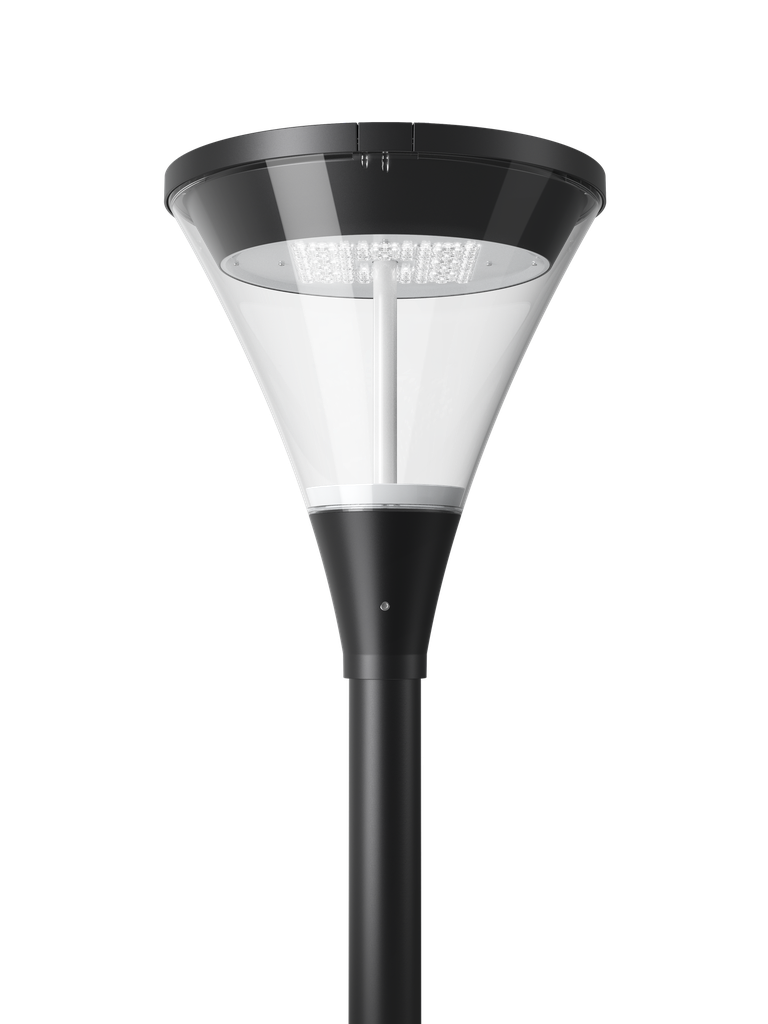

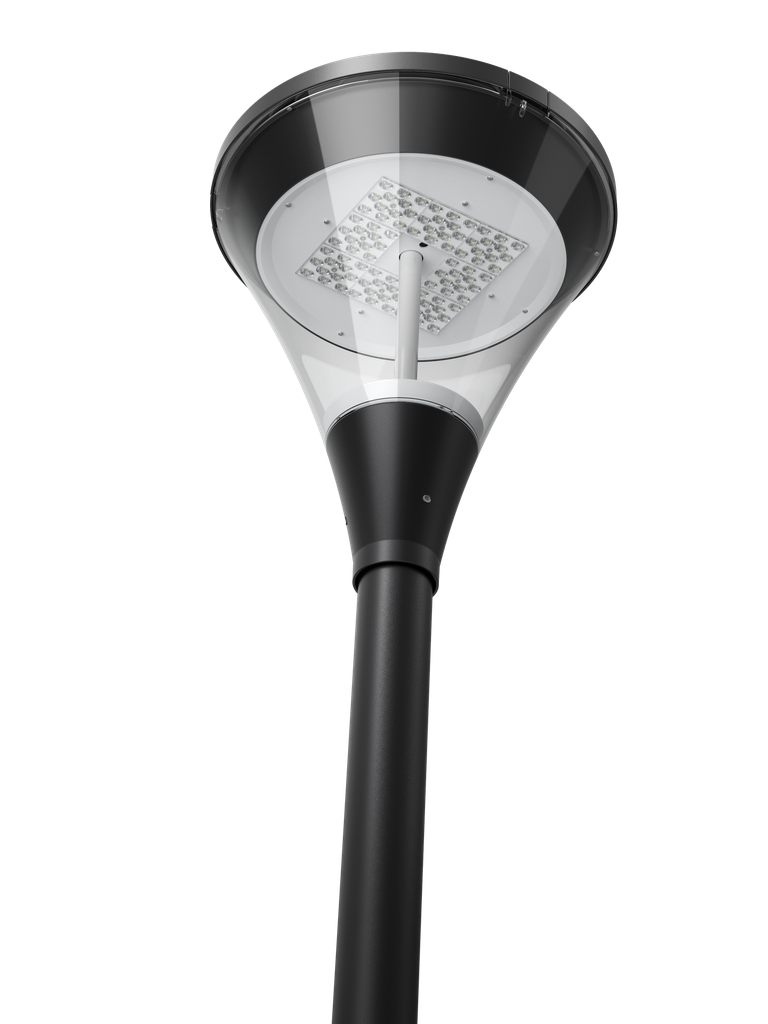

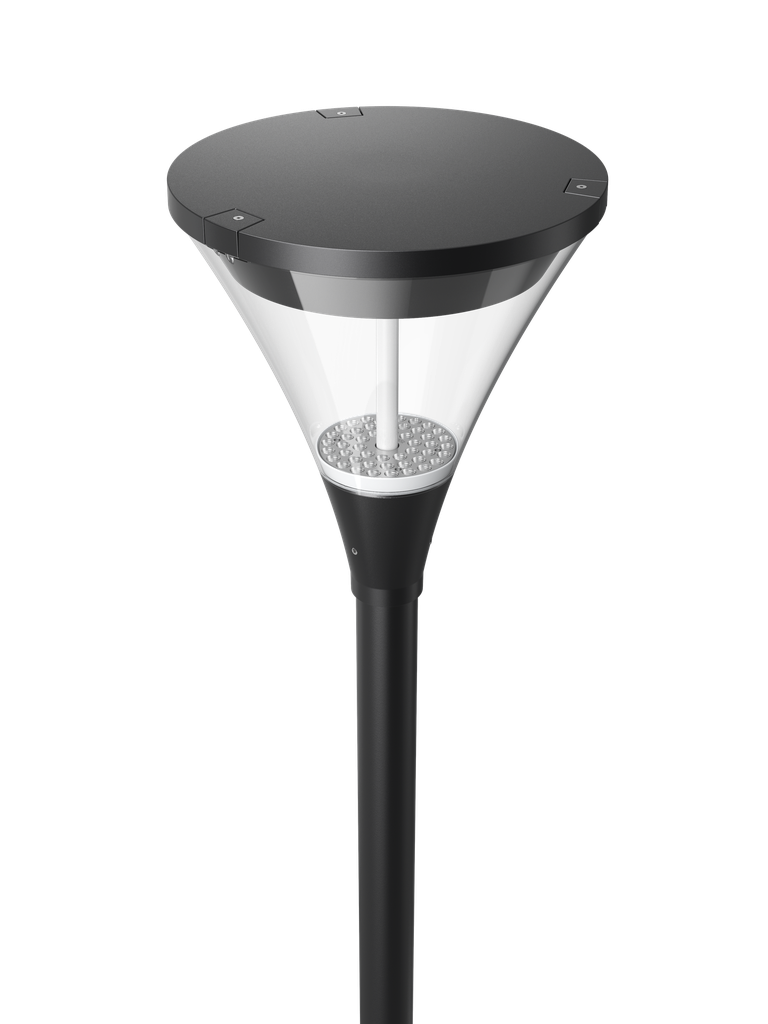

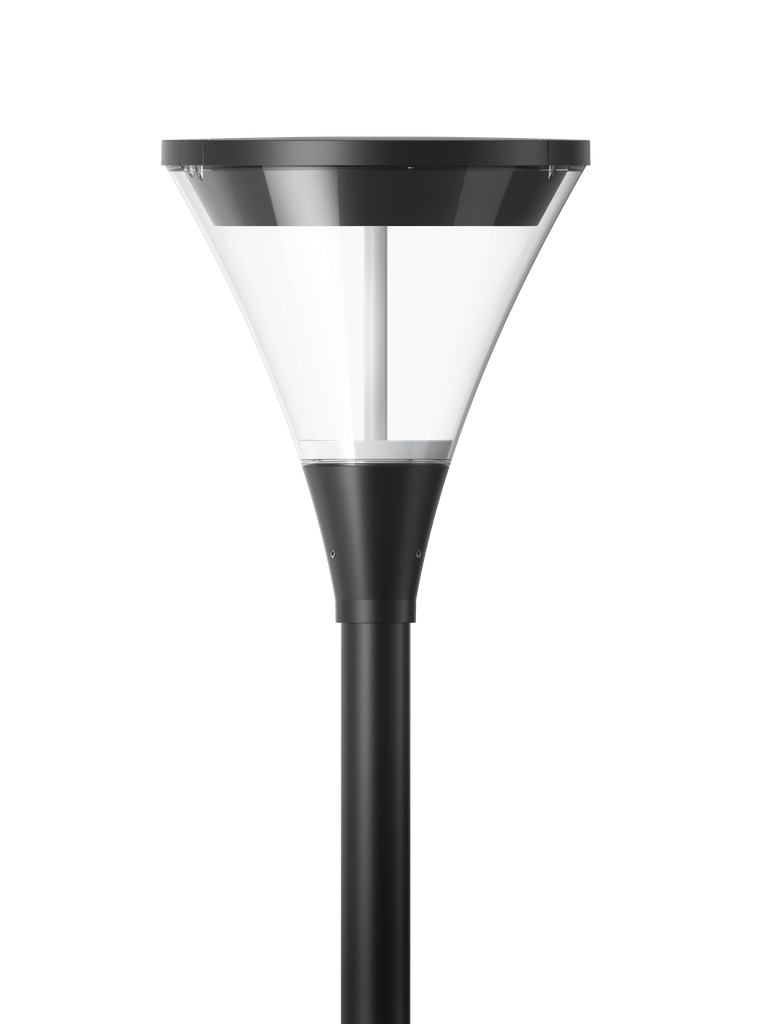

LED street light Tanos
Kontaktirajte nas za ceno in podrobnosti o dostavi. Naša ekipa vam bo v najkrajšem možnem času sporočila najnovejšo ceno in predvideni čas dostave.
Znamka:
Luxar
Key features:
- LED post top light / garden light
- Contemporary, architectural design, elegant appearance
- Color black RAL 9017
- 100-240V 50/60Hz
- Professional optic provide an excellent effect, managing glare while provides high level of visibility
- IK09, IP66 rated
- Ø 60mm post top mount available
- Area, site and pedestrian scale applications
- ULOR = 0 (Upper Light Output Ratio)
Technical specifications:
- Model no.: TANOS 020, TANOS 040, TANOS 060, TANOS 020A, TANOS 040A
- Power consumption: 20 W (TANOS 020, TANOS 020A), 40 W (TANOS 040, TANOS 040A), 60 W (TANOS 060)
- Input voltage: 100-240 VAC , 50 / 60 Hz
- Power factor: ≥0.92 at Max Load
- Surge protection: 4kV line-line, 6kV line-earth
- Control: Dimmable and non-dimmable, DALI, microwave sensor, zhaga wireless control, photocell control
Optic information:
- LED type: LED 3030
- Luminous Flux ( ±10%): 1800 lm (TANOS 020A), 2800 lm (TANOS 020), 3600 lm (TANOS 040A), 5600 lm (TANOS 040), 8400 lm (TANOS 060)
- Efficacy: 140 lm / W (TANOS 020, TANOS 040, TANOS 060), 90 lm / W (TANOS 020A, TANOS 040A)
- Correlated color temperature: 3000 K
- Color rendering index: Ra70 (Ra80 optional)
- Beam angle: R01201, R10202, R01203, R01209 (TANOS 020, TANOS 040, TANOS 060), R00C52 (TANOS 020A, TANOS 040A)
Dimensions and mounting
- Product dimensions: Ø 371 x 420 mm
- Luminaire net weight: 4.9 kg
- Mounting option: Post top Ø 60 mm
- Material: Aluminum alloy, polycarbonate optical lens
- Finish: Powder coating
- Fixture color: RAL 9017 traffic black
- EPA: 0.09 m2
- IK rating: IK09
- IP rating: IP66
Lifespan and warranty:
- Operating temperature: -30°C to + 50°C
- Lifetime: 82.000 hrs - L80
- Warranty:
5 years
