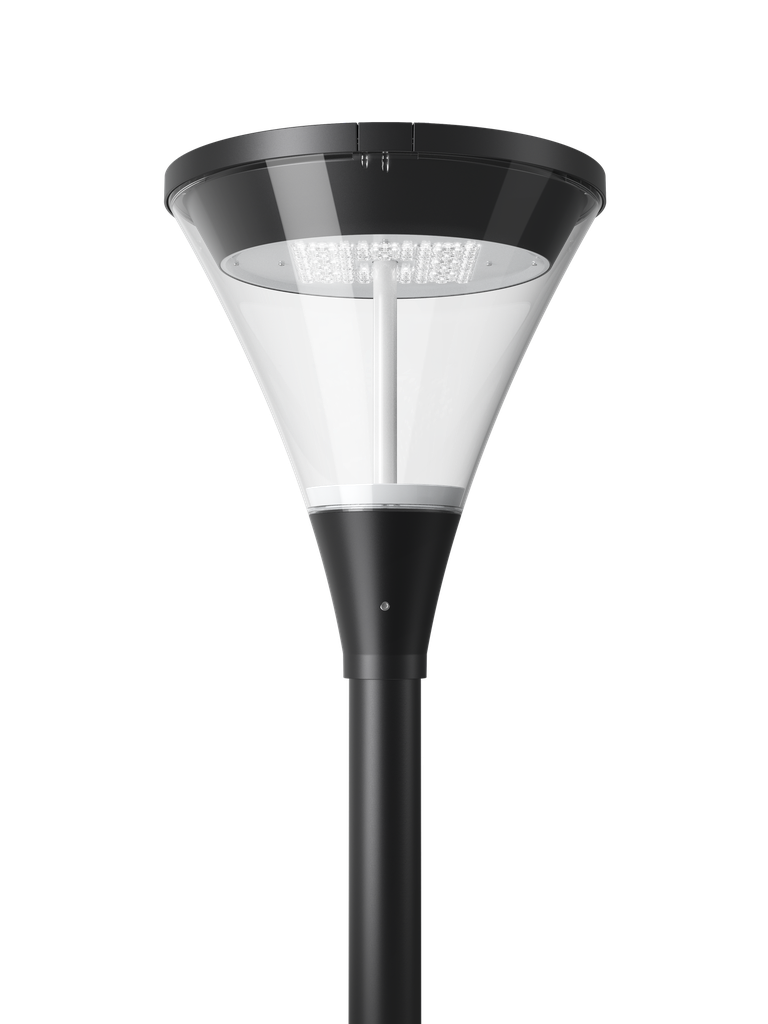

LED street light Tanos

0,00 €

Znamka: Luxar



Key features:

  • LED post top light / garden light
  • Contemporary, architectural design, elegant appearance
  • Color black RAL 9017
  • 100-240V 50/60Hz
  • Professional optic provide an excellent effect, managing glare while provides high level of visibility
  • IK09, IP66 rated
  • Ø 60mm post top mount available
  • Area, site and pedestrian scale applications
  • ULOR = 0 (Upper Light Output Ratio)

Technical specifications:

  • Model no.: TANOS 020, TANOS 040, TANOS 060, TANOS 020A, TANOS 040A
  • Power consumption: 20 W (TANOS 020, TANOS 020A), 40 W (TANOS 040, TANOS 040A), 60 W (TANOS 060)
  • Input voltage: 100-240 VAC , 50 / 60 Hz
  • Power factor: ≥0.92 at Max Load
  • Surge protection: 4kV line-line, 6kV line-earth
  • Control: Dimmable and non-dimmable, DALI, microwave sensor, zhaga wireless control, photocell control

 Optic information:

  • LED type: LED 3030
  • Luminous Flux ( ±10%): 1800 lm (TANOS 020A), 2800 lm (TANOS 020), 3600 lm (TANOS 040A), 5600 lm (TANOS 040), 8400 lm (TANOS 060)
  • Efficacy: 140 lm / W (TANOS 020, TANOS 040, TANOS 060), 90 lm / W (TANOS 020A, TANOS 040A)
  • Correlated color temperature: 3000 K
  • Color rendering index: Ra70 (Ra80 optional)
  • Beam angle: R01201, R10202, R01203, R01209 (TANOS 020, TANOS 040, TANOS 060), R00C52 (TANOS 020A, TANOS 040A)

Dimensions and mounting

  • Product dimensions: Ø 371 x 420 mm
  • Luminaire net weight: 4.9 kg
  • Mounting option: Post top Ø 60 mm
  • Material: Aluminum alloy, polycarbonate optical lens
  • Finish: Powder coating
  • Fixture color: RAL 9017 traffic black
  • EPA: 0.09 m2
  • IK rating: IK09
  • IP rating: IP66

Lifespan and warranty:


  • Operating temperature: -30°C to + 50°C
  • Lifetime: 82.000 hrs - L80
  • Warranty: 5 years
