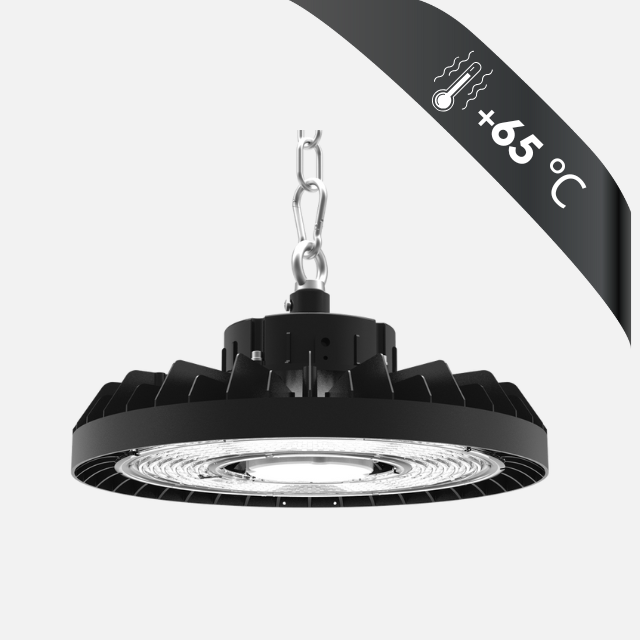

High Bay LED luminaire Volcano
https://www.ett-lighting.com/shop/high-bay-led-luminaire-volcano-288 https://www.ett-lighting.com/web/image/product.template/288/image_1920?unique=51532fbVOLCANO has 190lm/W high efficiency at light output and various beam angle ( 60°, 90°, 120°), perfect for high mounting application. The plug-and-play sensor ensures more energy saving. Superior thermal management on heat sink ensure it can be used at 65°C working environment. Importantly, 10 years warranty is for projects, where ambient temperature is -30°- +50°C.
Key features:
- Dust-free accumulation design, better heat dissipation
- Built-in compact microwave motion sensor (optional)
- Well-sealed with dust tight and waterproof rating of IP65
- Multiple mounting options
- Super high efficacy up to 200 lm/W
Power | 100 W or 120 W or 150 W or 200 W |
Control | None or DALI |
Luminous flux (± 10%) | 19000 lm (100 W), 22800 lm (120 W), 28500 lm (150 W), 38000 lm (200 W) |
Input voltage | 100 - 240 V AC, 50 - 60 Hz |
Power factor | ≥ 0.93 |
Surge protection | 4kV line-line, 6kV line-earth |
LED Type | SMD |
Efficacy | 190 lm / W |
Correlated color temperature | 5000 K |
Color rendering index (CRI) | 70 |
UGR | 25 |
Product dimensions | Ø 36 x 18.6 cm |
Mounting option | Ceiling mount or Loop hanging or Wall mount |
Color | Black |
Material | Aluminium & polycarbonate |
IP rating | IP65 |
IK rating | IK08 |
VOLCANO has 190lm/W high efficiency at light output and various beam angle ( 60°, 90°, 120°), perfect for high mounting application. The plug-and-play sensor ensures more energy saving. Superior thermal management on heat sink ensure it can be used at 65°C working environment. Importantly, 10 years warranty is for projects, where ambient temperature is -30°- +50°C.
Key features:
- Dust-free accumulation design, better heat dissipation
- Built-in compact microwave motion sensor (optional)
- Well-sealed with dust tight and waterproof rating of IP65
- Multiple mounting options
- Super high efficacy up to 200 lm/W
