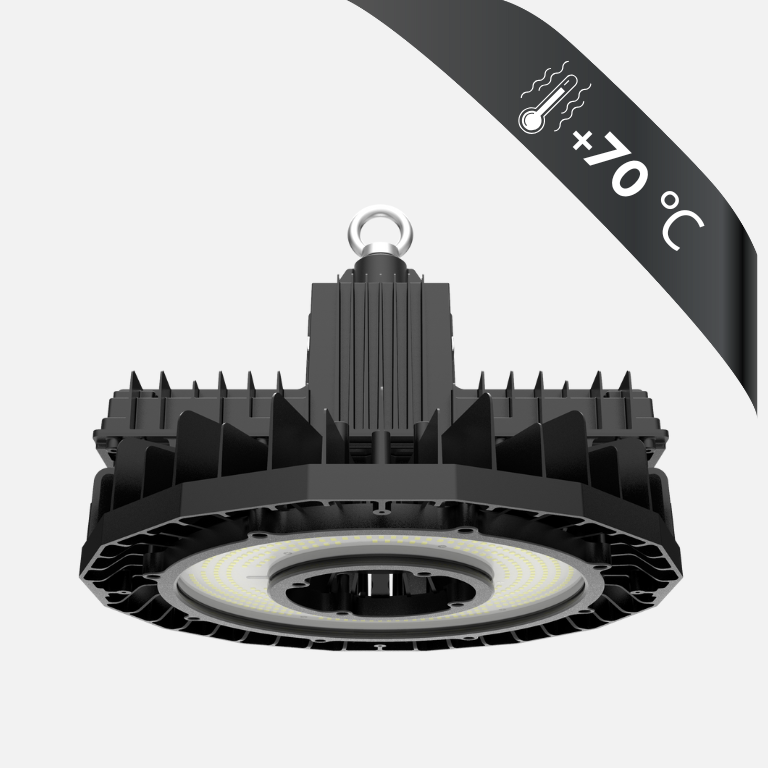

High Bay LED luminaire Hefajst
https://www.ett-lighting.com/shop/high-bay-led-luminaire-hefajst-280 https://www.ett-lighting.com/web/image/product.template/280/image_1920?unique=9503905HEFAJST highbay light is specially designed for high working temperature industrial ambient, even for up to 65~70°C. Advanced thermal management system, with large dust free heat sink and raised driver box, allows superior heat dissipation, ensuring long life with minimal lumen depreciation.
Znamka:
Luxar
Key features:
- Working temperature up to 70°C
- High performance LED design delivering up to 165 lm/W, up to 33000lm
- Four wattages 100W, 120W, 150W, 200W
- Well-sealed with dust tight and waterproof rating of IP65
- Outstanding cooling performance with excellent air cross- ventilation design
- 50,000 hours, long life at L70@70°C
- DALI optional
Power | 100 W or 120 W or 150 W or 200 W |
Luminous flux (± 10%) | 16500 lm (100 W), 19800 lm (120 W), 24750 lm (150 W), 33000 lm (200 W) |
Input voltage | 220 - 240 V AC, 50 - 60 Hz |
Power factor | ≥ 0.92 |
Surge protection | 2kV line-line, 4kV line-earth |
Control | None or DALI |
LED Type | LED 3030 |
Efficacy | 165 lm / W |
Correlated color temperature | 5000 K |
Color rendering index (CRI) | 70 |
Product dimensions | Ø 40.0 x 30.65 cm |
Mounting option | Ceiling mount or Loop hanging |
Color | Black |
Material | Aluminium & glass |
IP rating | IP65 |
IK rating | IK07 |
Key features:
- Working temperature up to 70°C
- High performance LED design delivering up to 165 lm/W, up to 33000lm
- Four wattages 100W, 120W, 150W, 200W
- Well-sealed with dust tight and waterproof rating of IP65
- Outstanding cooling performance with excellent air cross- ventilation design
- 50,000 hours, long life at L70@70°C
- DALI optional
